Hollow Waveguide Silica fibers

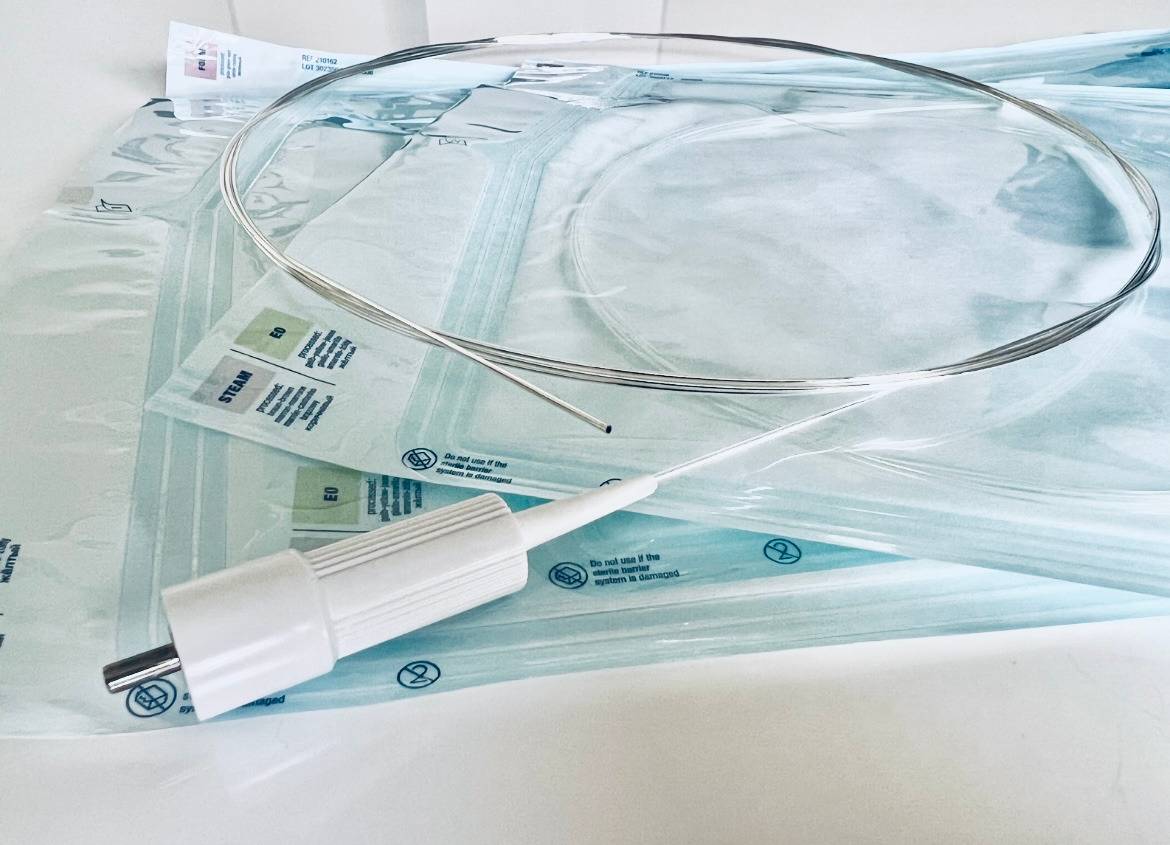

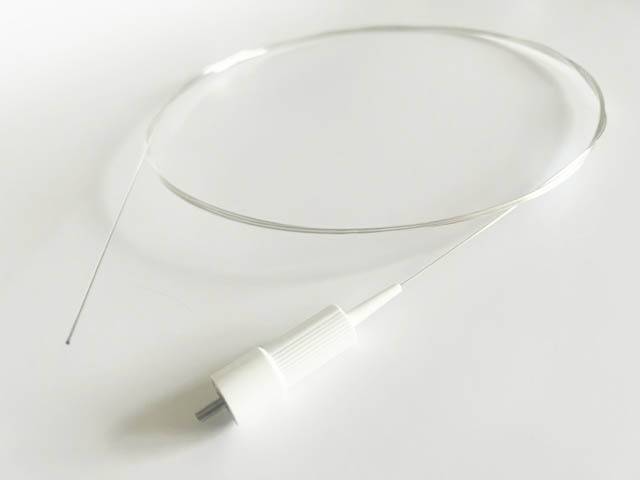

The hollow waveguide fiber (HWG)...
is a flexible and multidisciplinary laser tool for the transmission of radiation in the mid-infrared range (2-18mic) for minimally invasive procedures such as ENT, gynecology, and dermatology with CO2.
Due to their flexibility and small diameter, hollow waveguide fibers can be used in areas that are not accessible for laser systems with mirror articulated arm technology.
Features:
- High transmission
- Inner diameter 500-1000 mic
- Double polymer coating for high flexibility
- Biocompatible materials
- Customized connector design, available
- Validated sterilization Process
Composition
Specifications
| Silica glass capillary | SiO2 |
| Fresnel Reflection Losses | 0% |
| Attenuation at designated wavelength | see table below |
| Recommended max power level for CO2-laser | 10W for HWG-500 20W for HWG-750 30W for HWG-1000 |
| Effective Numerical Aperature (output NA) | 0,05+/-0,01* |
| Bending losses, for 360° loop of ø=400mm | 1dB |
| Protective Jacket | Acrylat + Fluorpolymer |
| Operating Temperature | -50°C bis +90°C |
| Minimum Elastic Bending Radius | 150 x [innerer HWG-Durchmesser] |
* depends on input NA
Parameter Hollow Glass Waveguides
| Code | Inner diameter, µm | Outer diameter, µm | Protective Jacket OD, µm | Optical losses at 10,6µm wavelength, db/m | Min. bending Radius, mm |
| HWG 500 | 500 ± 25 | 650 ± 20 | 1000 ± 30 | 0.7 | 75 |
| HWG 750 | 750 ± 30 | 950 ± 25 | 1300 ± 50 | 0.5 | 100 |
| HWG 1000 | 1000 ± 30 | 1300 ± 25 | 1600 ± 50 | 0.3 | 150 |
